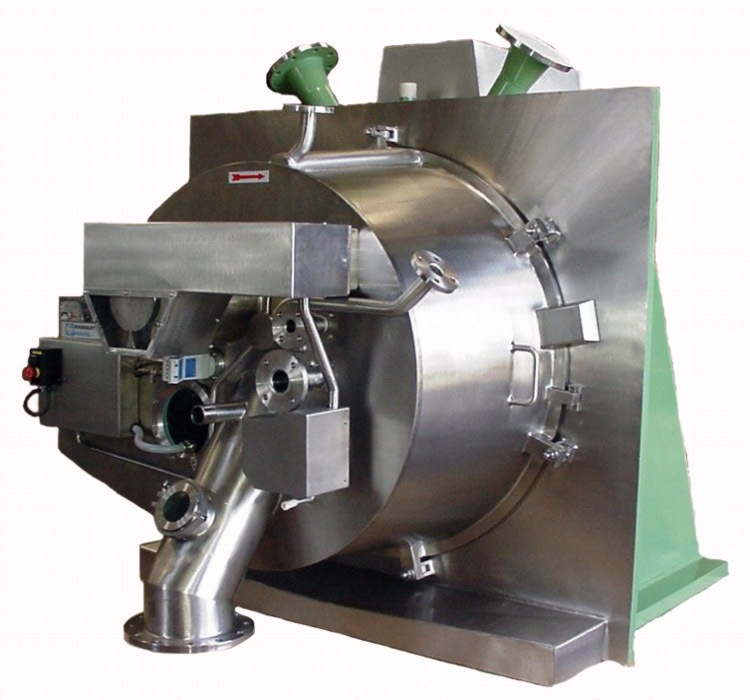

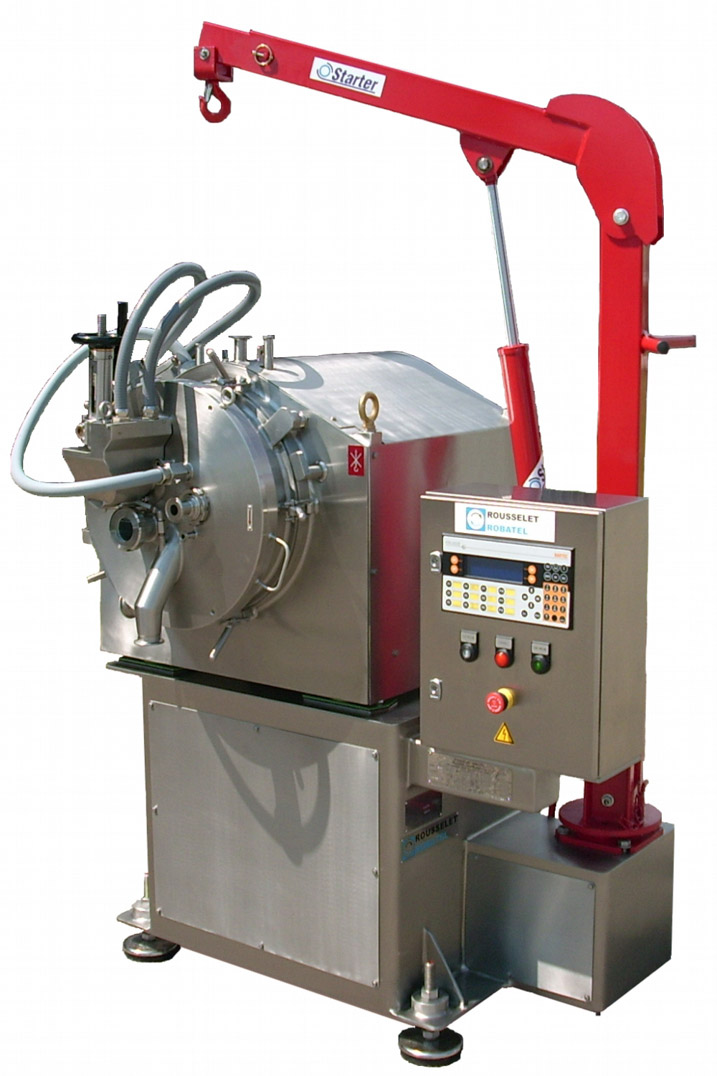

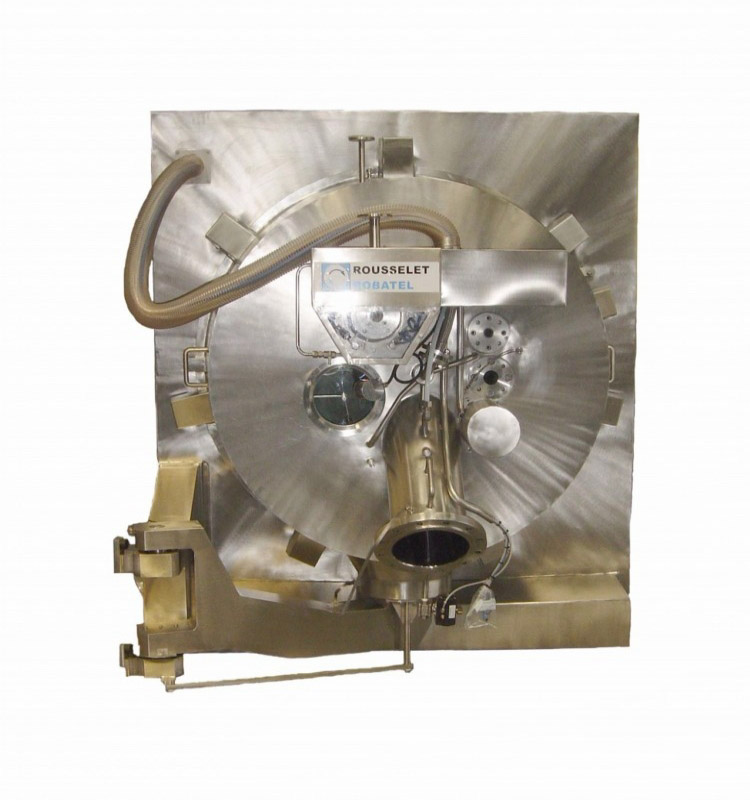

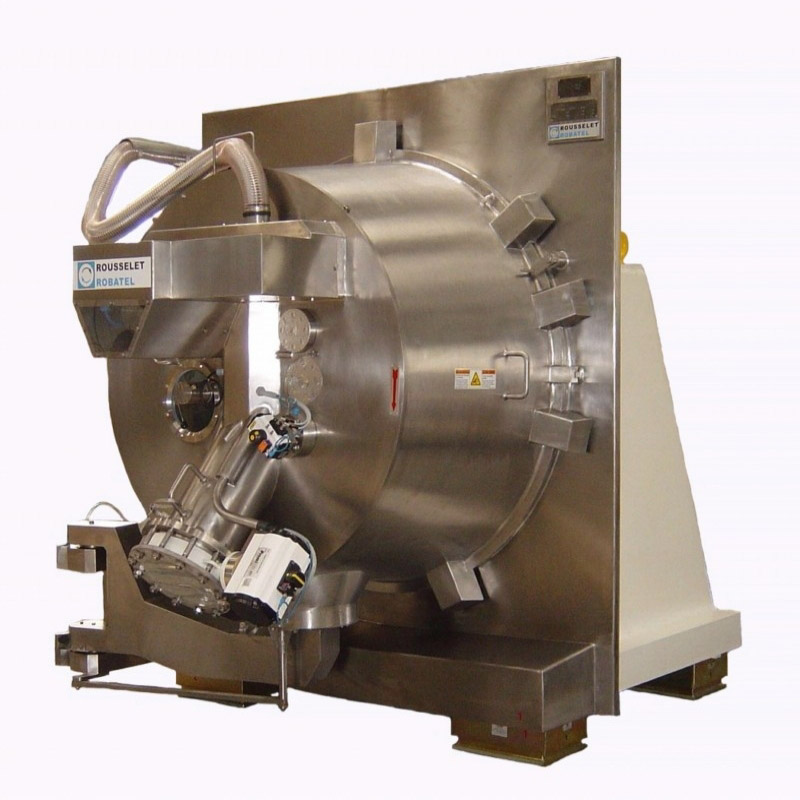

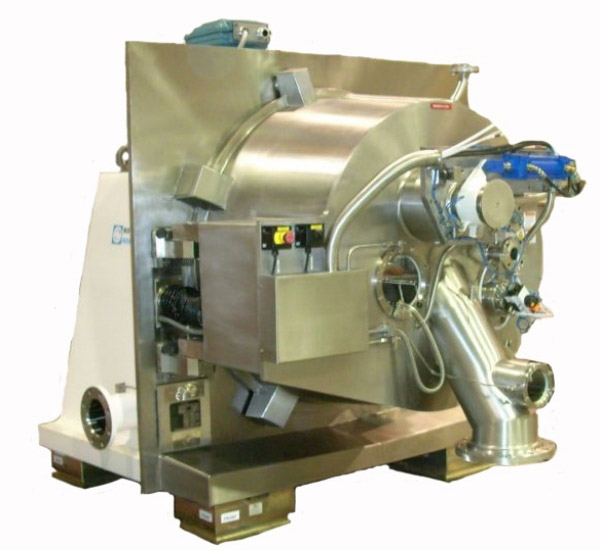

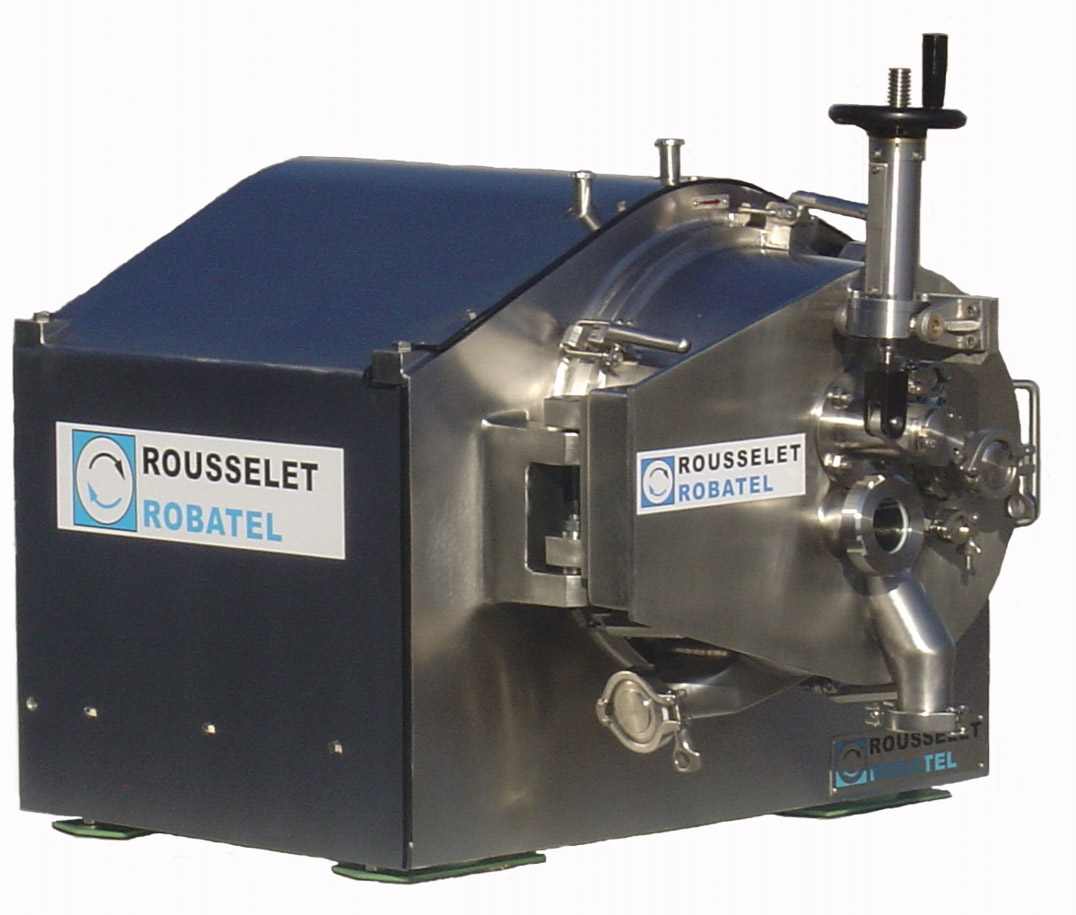

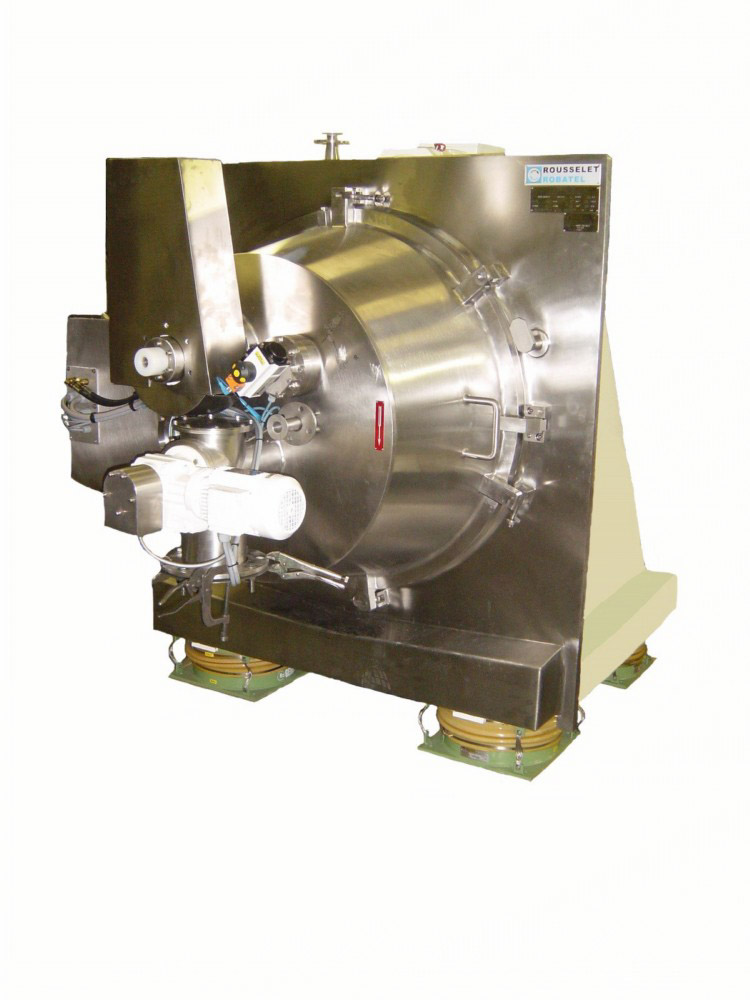

Horizontal axis peeler centrifuges

Centrifuge | Separation solid-liquid | Group: EHBL



  Characteristics

  • Maximal compactness.
  • Ground level or mezzanine level installation.

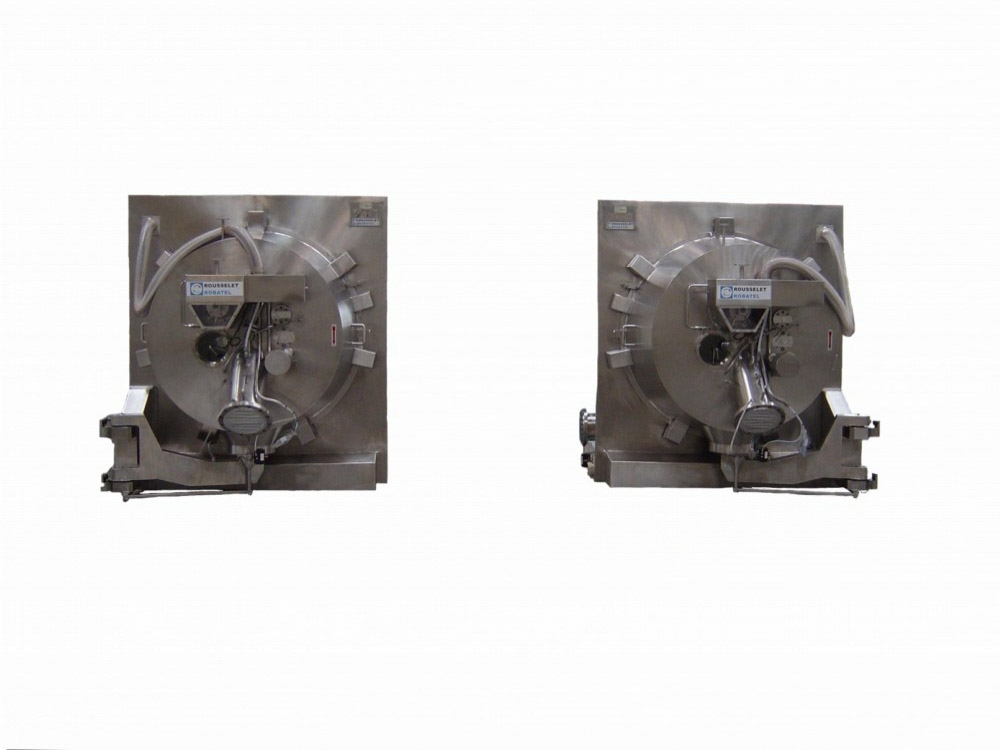

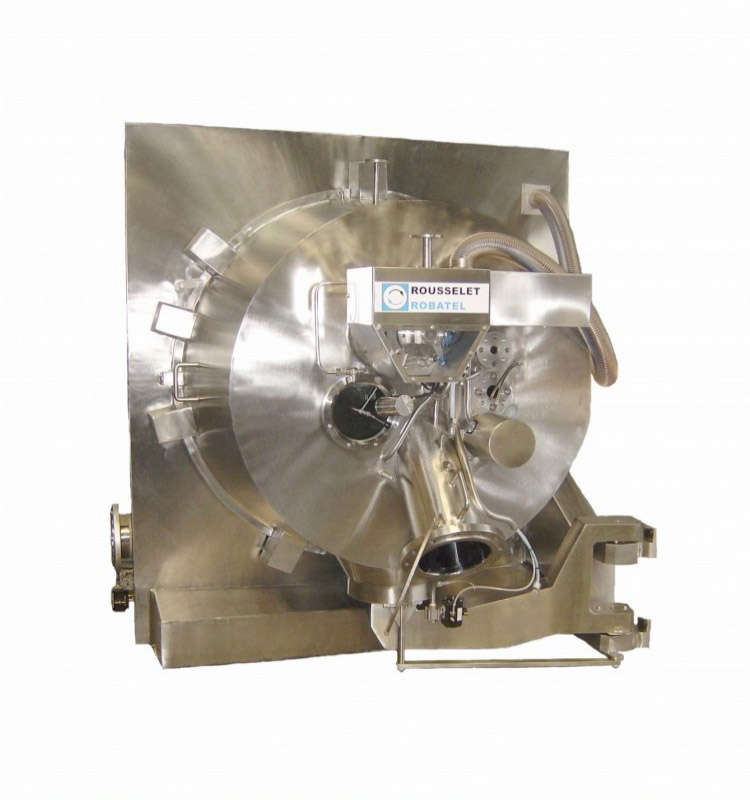

  • Clean room installation possible : "through the wall" separation of processing and technical areas.

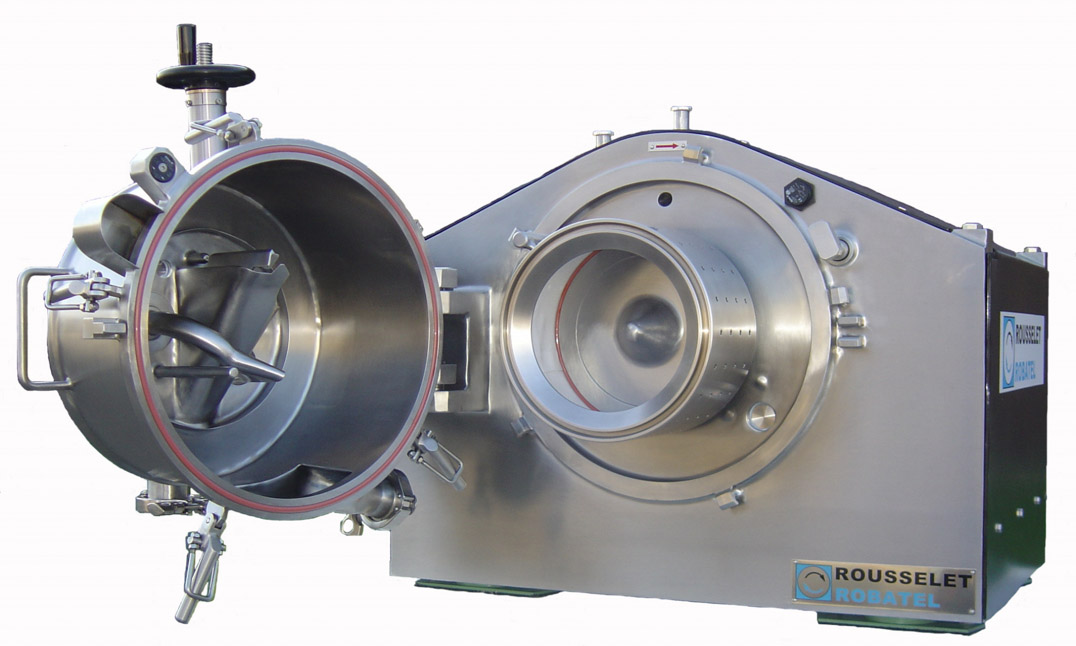

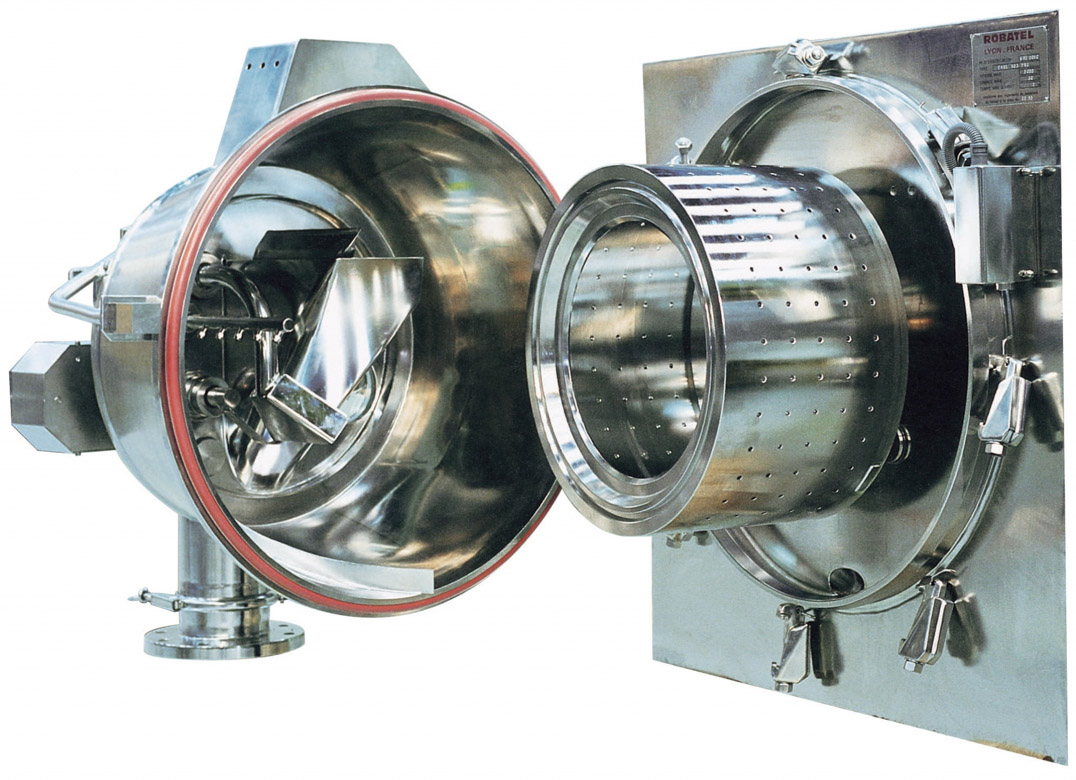

  • Full opening housing.

  Performance

  • High centrifugal forces.
  • Increased productivity.
  • Optimized stability.
  • Possibility of fully automated cycle.

  Functionability

  • Instantaneous and integral visual inspection??? housing opened.
  • Possibility to “flood wash” the basket.
  • Ease of filtration cloth and backing mesh fixing and removing.



  Download brochure as PDF

  Submit request

Technical data filters

Type Reel ⌀ (mm) Reelhight (mm) Useful volume (L) max. loading (kg) Filter surface (m2) max. Rotation speed max. G-number
EHBL 303 300 75 2,90 3,60 67 3.500 2.050
EHBL 503 500 250 24 30 400 2.600 1.890
EHBL 503 500 250 24 30 400 2.600 1.890
EHBL 633 630 315 40 50 630 2.400 2.020
EHBL 813 810 350 94 120 900 2.000 1.810
EHBL 1053 1.050 610 220 275 2.000 1.550 1.410
EHBL 1153 1.150 610 330 410 2.200 1.400 1.260
EHBL 1323 1.320 720 440 550 3.000 1.235 1.130
