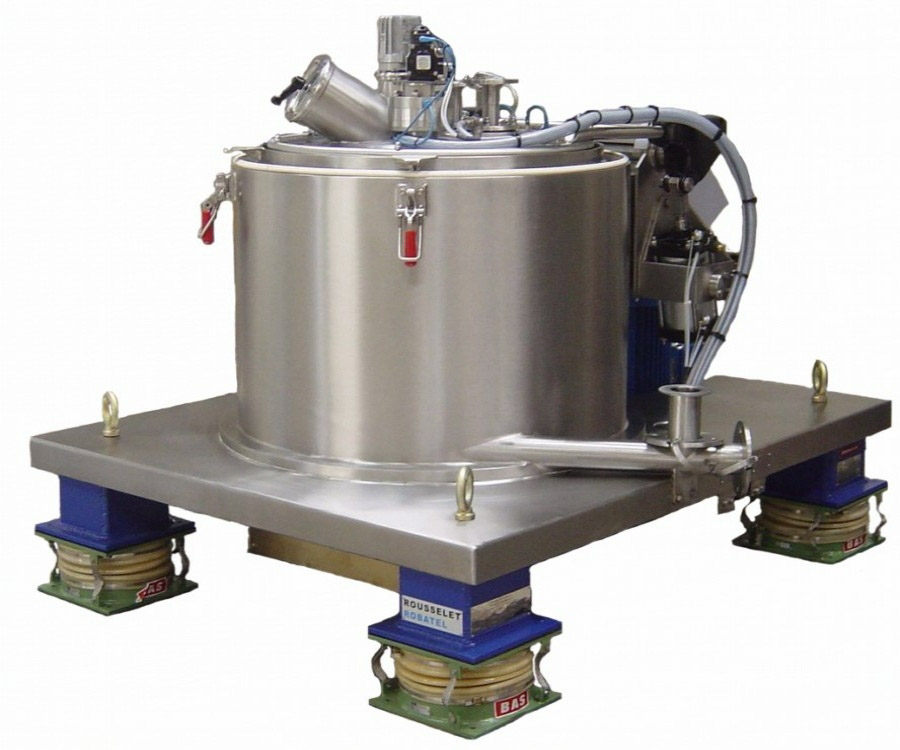

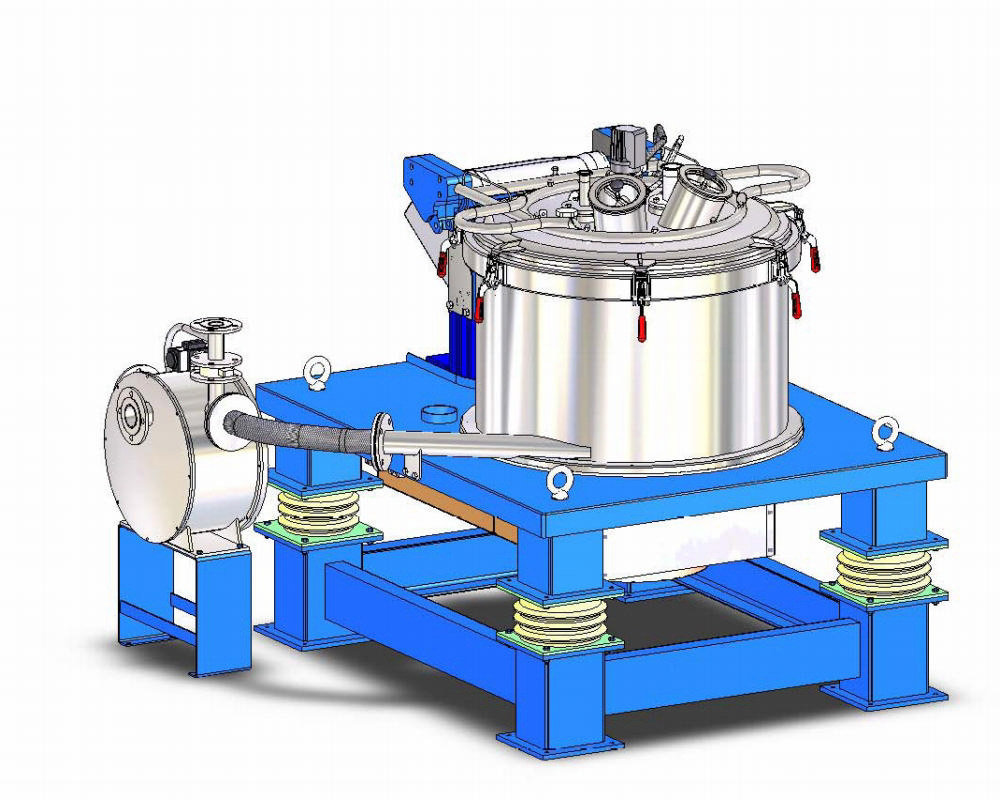

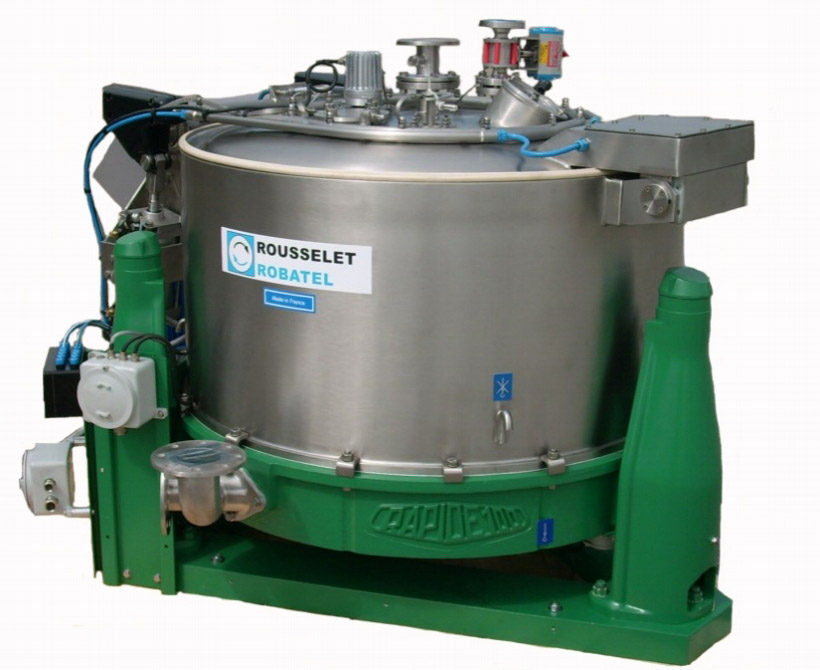

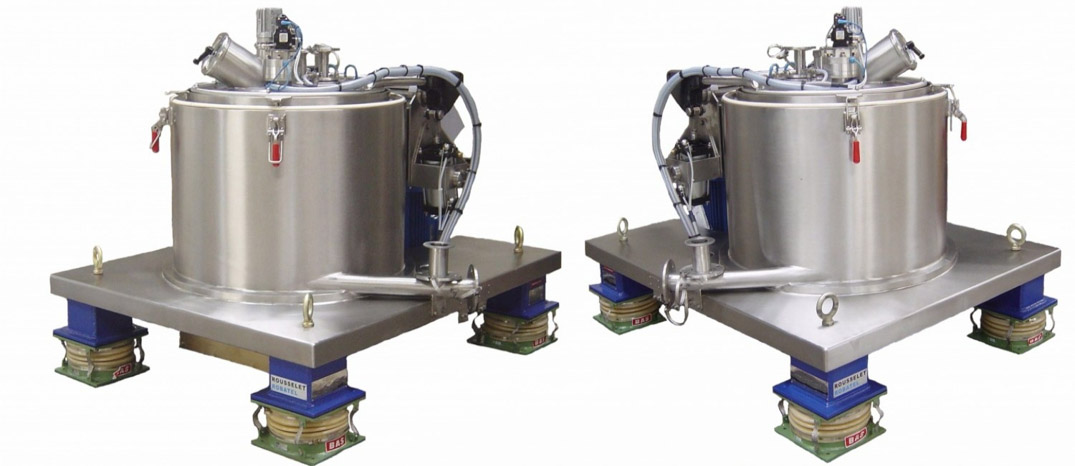

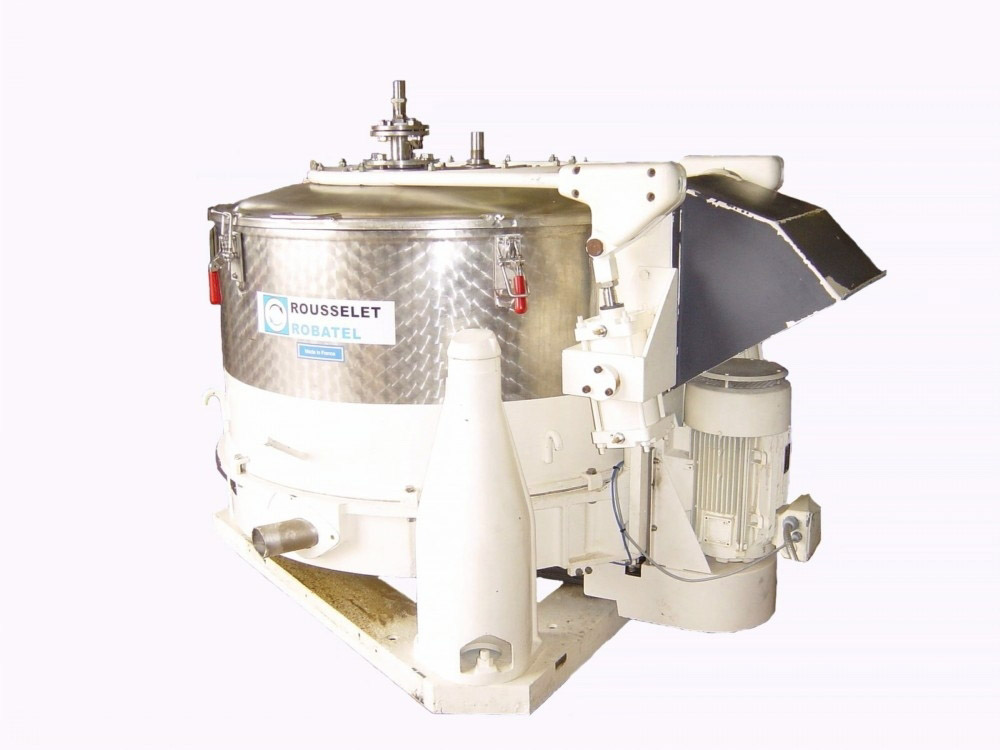

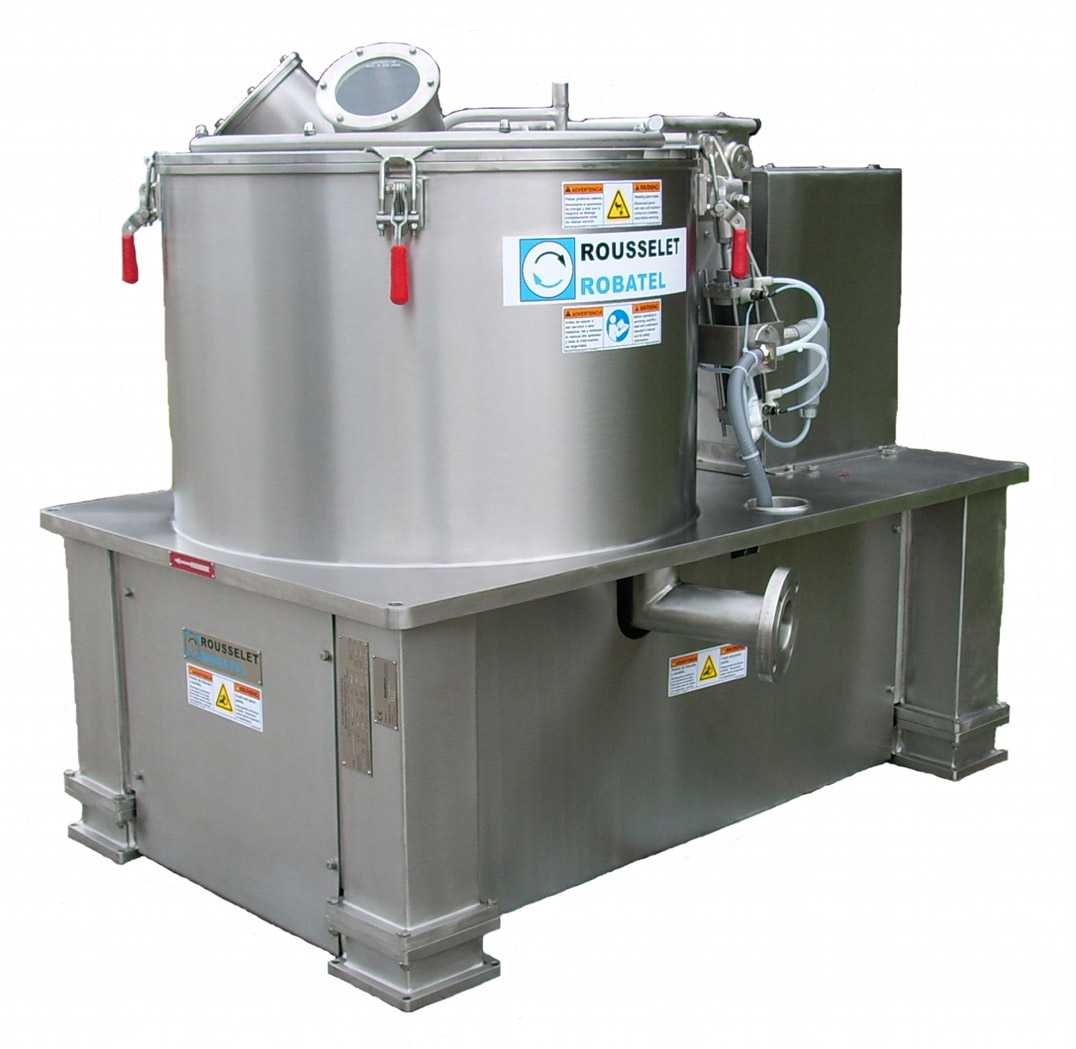

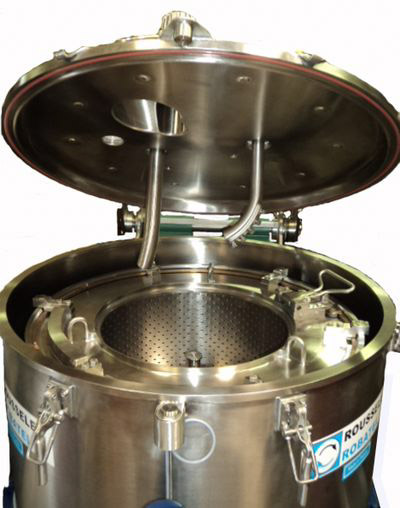

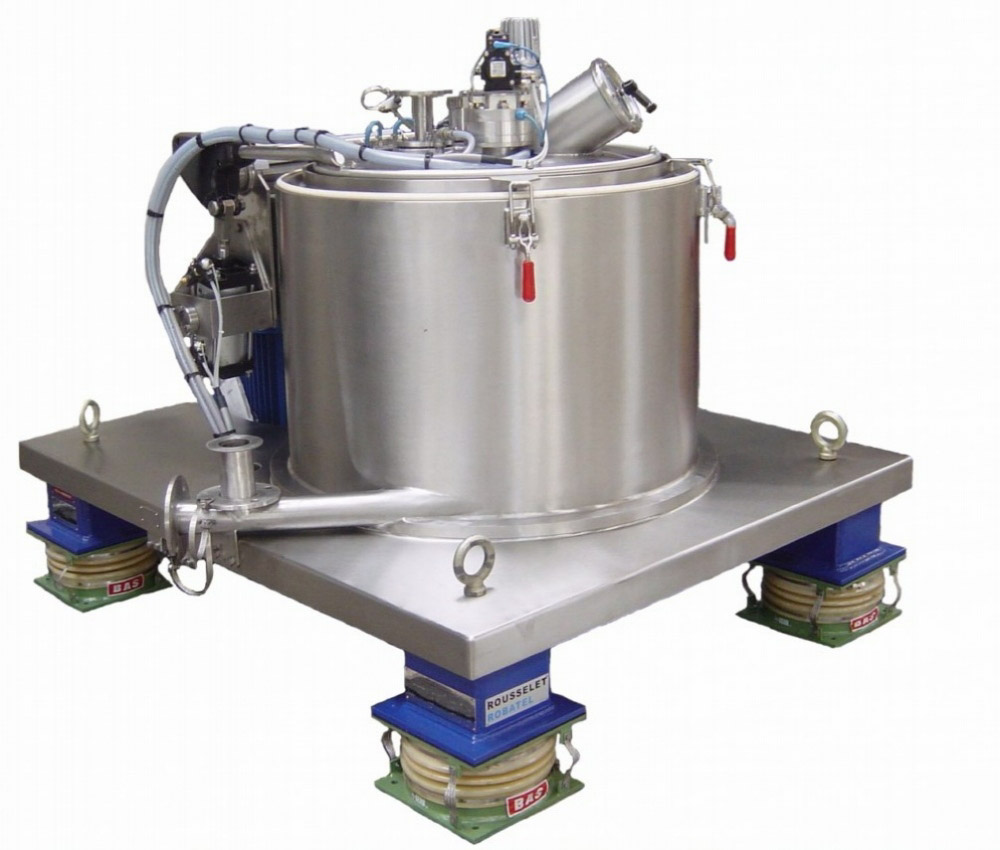

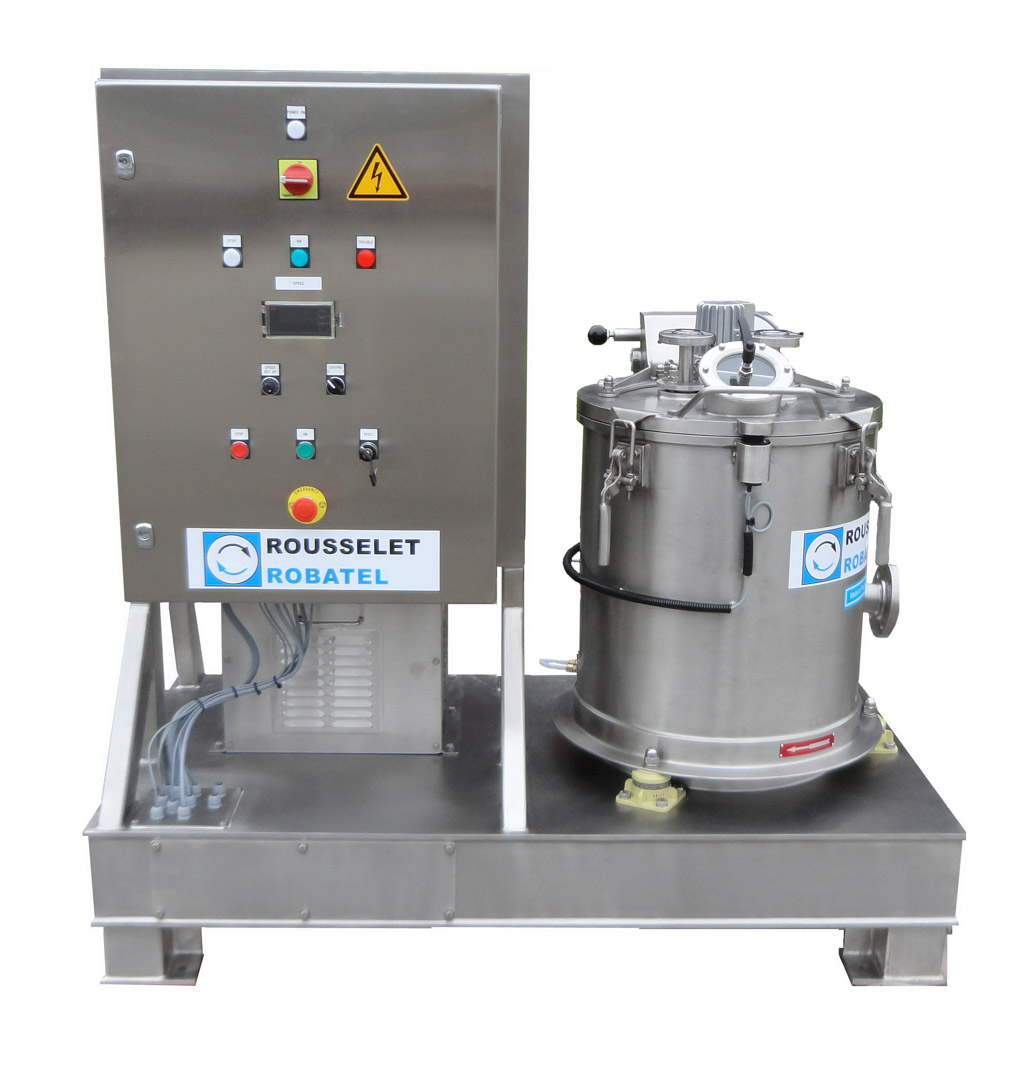

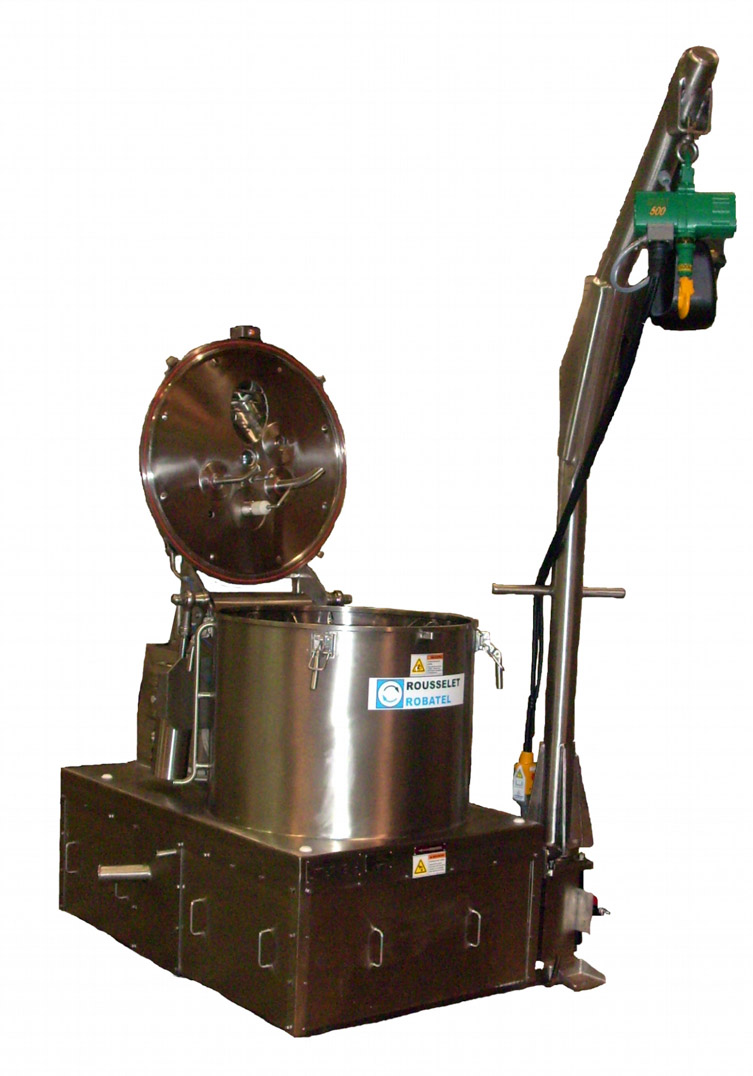

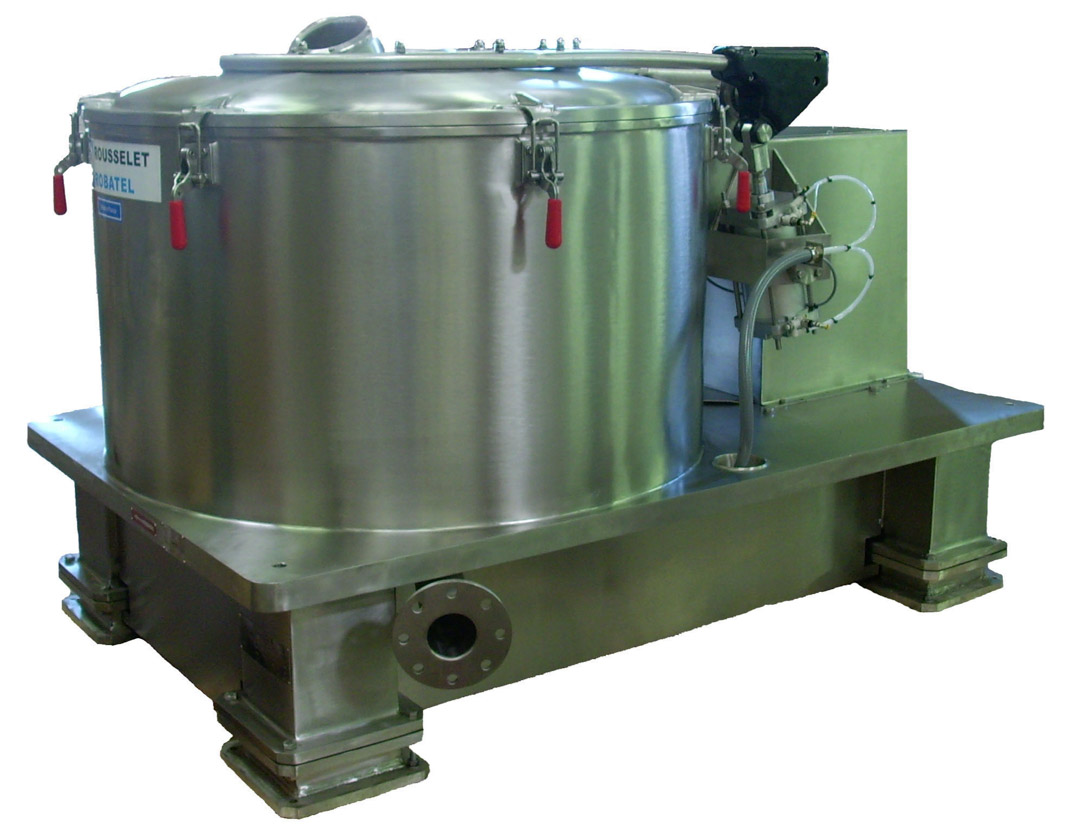

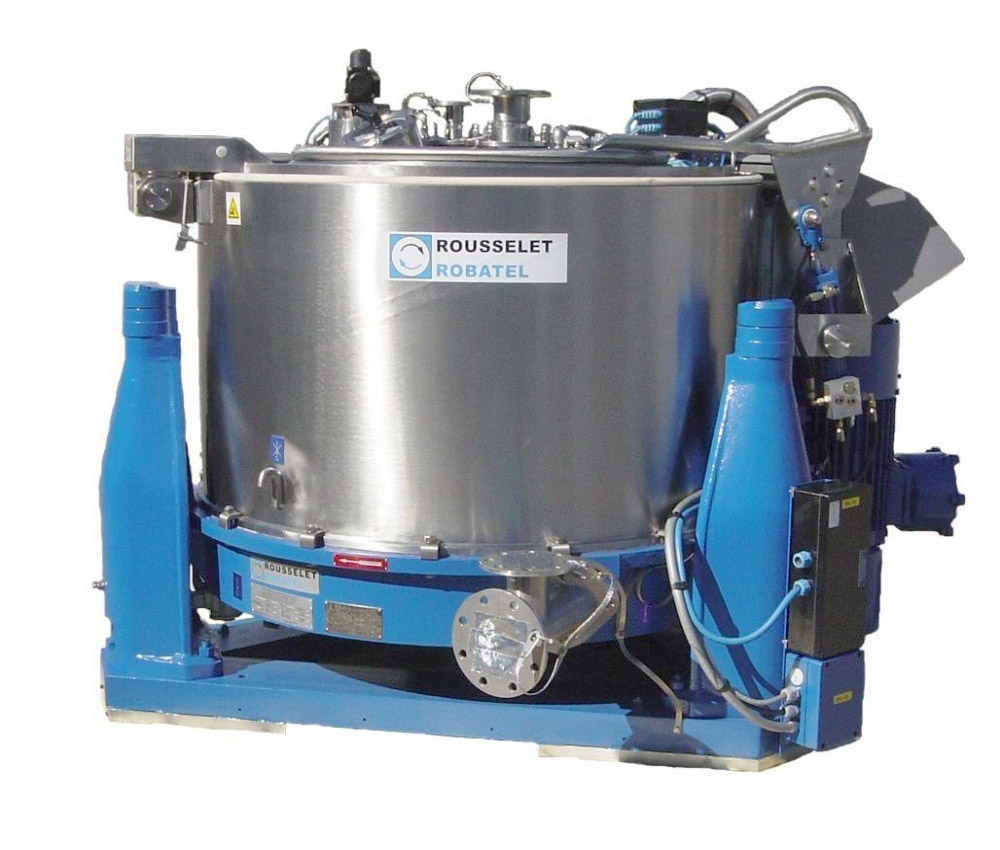

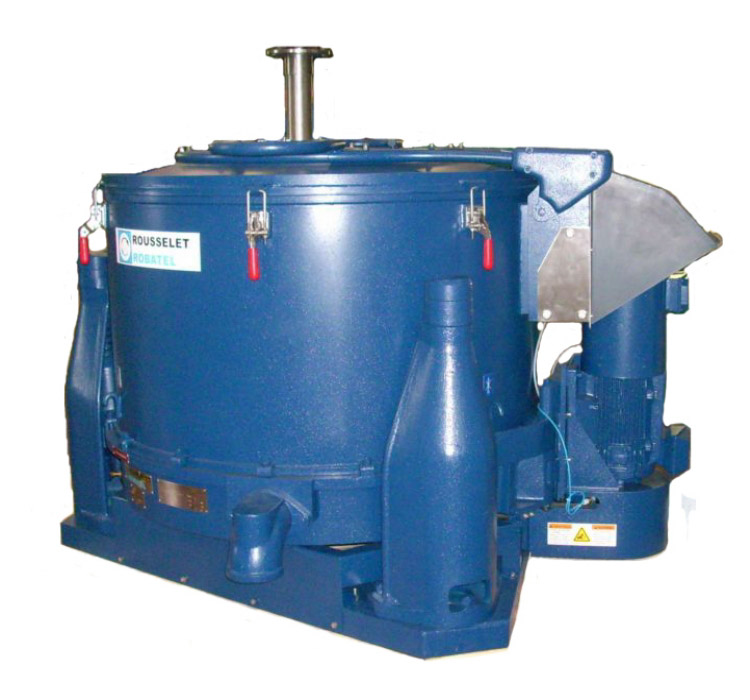

Production scale vertical axis basket centrifuges with removable filtration bag

Centrifuge | Separation solid-liquid | Group: KSA



  Characteristics

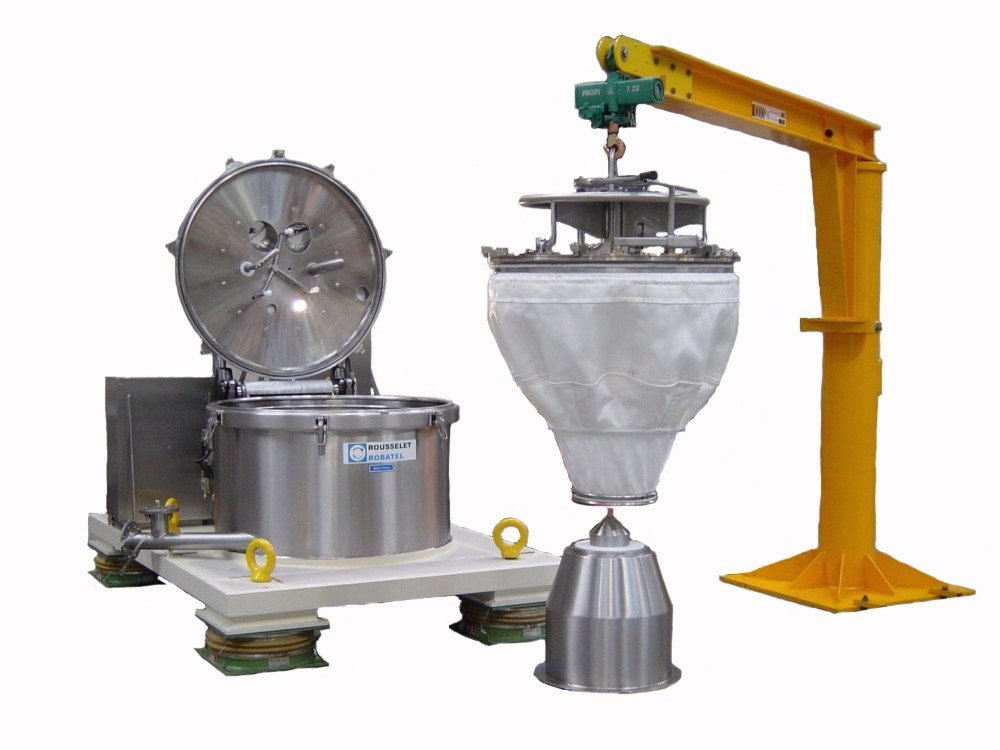

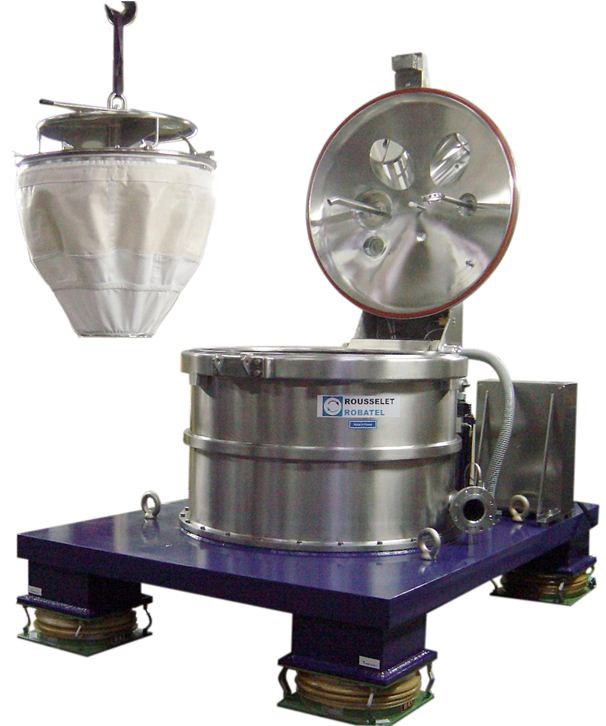

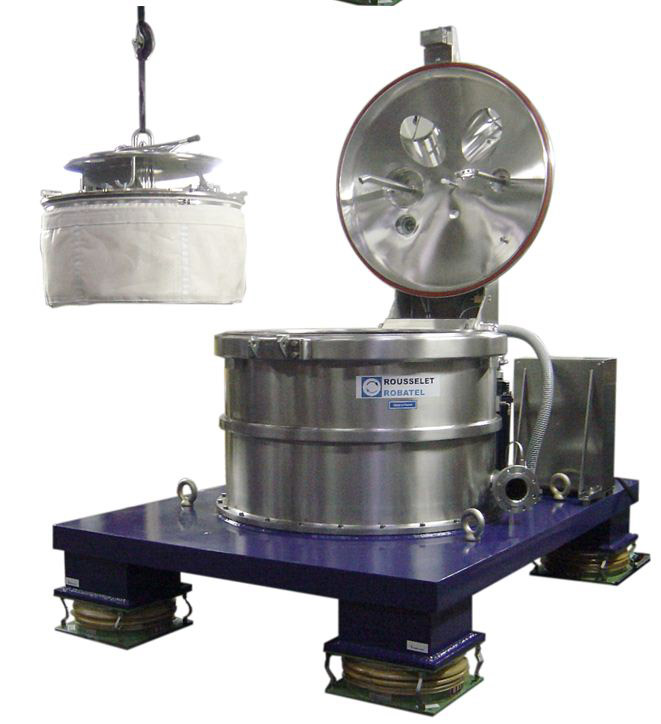

  • Cake discharge via removable filtration bag.
  • Manual or semi-automatic cycle control.
  • Machine to be installed on a ground or a mezzanine floor.
  • Versatile centrifuge for multi product processors.

  Performance

  • Large scale production for low investment and reduced operating and maintenance costs.

  Functionability

  • Complete cake removal (no residual heel).
  • Easy access to the process area of the centrifuge.
  • Simplified cleaning operations and filter media changes.



  Download brochure as PDF

  Submit request

Technical data filters

Type Reel ⌀ (mm) Reelhight (mm) Useful volume (L) max. loading (kg) Filter surface (m2) max. Rotation speed max. G-number
RC 40 KSA 400 280 18 22,50 310 2.300 1.180
RC 50 KSA 500 320 35 43 500 1.700 810
RC 60 KSA 600 305 60 75 570 1.500 750
RC/SC 70 KSA 700 350 70 90 770 1.400 770
RC/SC 85 KSA 850 440 125 155 1.160 1.300 800
RC/SC 100 KSA 1.000 500 200 240 1.570 1.150 740
RC/SC 120 KSA 1.200 600 330 400 2.260 1.000 670
RC/SC 125 KSA 1.250 630 395 495 2.480 900 570
RC/SC 150 KSA 1.500 750 600 750 3.420 750 535
RC/SC 200 KSA 2.000 780 970 1.200 4.500 580 380
RC/SC 200 KSA 2.000 900 1.120 1.400 5.650 580 380
