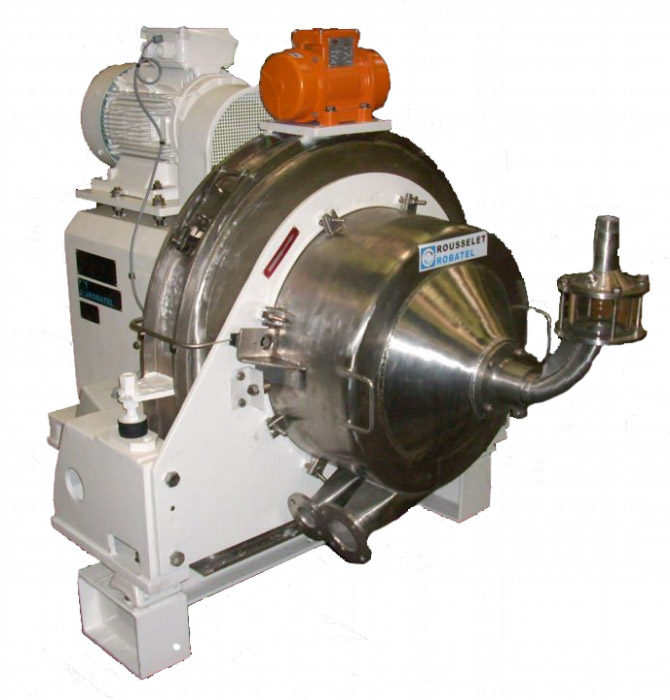

Horizontal axis continuous centrifuges
Centrifuge | Separation solid-liquid | Group: EC
Characteristics
- Machine to be installed on a ground or mezzanine floot.
- Hinged casing for full opening and easy access to the basket
- Separated feeding and washing pipes and outlets.
- Vibrator on casing for easier solid discharge.
Performance
- Scroll type centrifuge.
- Continuous running particularly suitable for most continuous chemical processing lines.
- Wide application range:
- - G effect from 2000 to 2500,
- - Temperature from 0 to 200° C,
- - Solid particle size from 50 microns.
- High output up to 10 tons/hour.
Functionability
- Minimum vibration transmission due to centrifuge mass and heavy-duty antivibration pads.
- Torque limitation between basket and screw.
Technical data filters
| Type | Reel ⌀ (mm) | Reelhight (mm) | Useful volume (L) | max. loading (kg) | Filter surface (m2) | max. Rotation speed | max. G-number |
|---|---|---|---|---|---|---|---|
| RC 63 Vx DEC | 630 | 370 | 50 | 62 | 730 | 1.500 | 792 |
| RC 85 Vx DEC | 850 | 425 | 130 | 162 | 1.130 | 1.300 | 803 |
| RC/SC 100 DEC | 1.000 | 500 | 170 | 215 | 1.570 | 1.000 | 559 |
| RC/SC 120 DEC | 1.200 | 600 | 310 | 390 | 2.260 | 1.050 | 543 |
| RC/SC 125 DEC | 1.250 | 630 | 395 | 495 | 2.470 | 1.200 | 1.006 |
| RC/SC 125 DEC | 1.250 | 800 | 500 | 625 | 3.140 | 1.200 | 1.006 |
| RC/SC 150 DEC | 1.500 | 750 | 580 | 725 | 3.530 | 900 | 679 |
| RC 160 DEC | 1.600 | 1.000 | 1.000 | 1.250 | 5.030 | 900 | 724 |
Type:
RC 63 Vx DEC
Reel ⌀ (mm):
630
Reelhight (mm):
370
Useful volume (L):
50
max. loading (kg):
62
Filter surface (m2):
730
max. Rotation speed:
1.500
max. G-number:
792
Type:
RC 85 Vx DEC
Reel ⌀ (mm):
850
Reelhight (mm):
425
Useful volume (L):
130
max. loading (kg):
162
Filter surface (m2):
1.130
max. Rotation speed:
1.300
max. G-number:
803
Type:
RC/SC 100 DEC
Reel ⌀ (mm):
1.000
Reelhight (mm):
500
Useful volume (L):
170
max. loading (kg):
215
Filter surface (m2):
1.570
max. Rotation speed:
1.000
max. G-number:
559
Type:
RC/SC 120 DEC
Reel ⌀ (mm):
1.200
Reelhight (mm):
600
Useful volume (L):
310
max. loading (kg):
390
Filter surface (m2):
2.260
max. Rotation speed:
1.050
max. G-number:
543
Type:
RC/SC 125 DEC
Reel ⌀ (mm):
1.250
Reelhight (mm):
630
Useful volume (L):
395
max. loading (kg):
495
Filter surface (m2):
2.470
max. Rotation speed:
1.200
max. G-number:
1.006
Type:
RC/SC 125 DEC
Reel ⌀ (mm):
1.250
Reelhight (mm):
800
Useful volume (L):
500
max. loading (kg):
625
Filter surface (m2):
3.140
max. Rotation speed:
1.200
max. G-number:
1.006
Type:
RC/SC 150 DEC
Reel ⌀ (mm):
1.500
Reelhight (mm):
750
Useful volume (L):
580
max. loading (kg):
725
Filter surface (m2):
3.530
max. Rotation speed:
900
max. G-number:
679
Type:
RC 160 DEC
Reel ⌀ (mm):
1.600
Reelhight (mm):
1.000
Useful volume (L):
1.000
max. loading (kg):
1.250
Filter surface (m2):
5.030
max. Rotation speed:
900
max. G-number:
724
Technical data decanter
| Type | Reel ⌀ (mm) | Reelhight (mm) | Useful volume (L) | max. loading (kg) | max. Rotation speed | max. G-number |
|---|---|---|---|---|---|---|
| EC 03 | 300 | 0 | 0 | 0 | 3.600 | 2.560 |
| EC 04 | 400 | 0 | 0 | 0 | 2.900 | 2.250 |
| EC 06 | 600 | 0 | 0 | 0 | 2.300 | 2.000 |
Type:
EC 03
Reel ⌀ (mm):
300
Reelhight (mm):
0
Useful volume (L):
0
max. loading (kg):
0
max. Rotation speed:
3.600
max. G-number:
2.560
Type:
EC 04
Reel ⌀ (mm):
400
Reelhight (mm):
0
Useful volume (L):
0
max. loading (kg):
0
max. Rotation speed:
2.900
max. G-number:
2.250
Type:
EC 06
Reel ⌀ (mm):
600
Reelhight (mm):
0
Useful volume (L):
0
max. loading (kg):
0
max. Rotation speed:
2.300
max. G-number:
2.000
