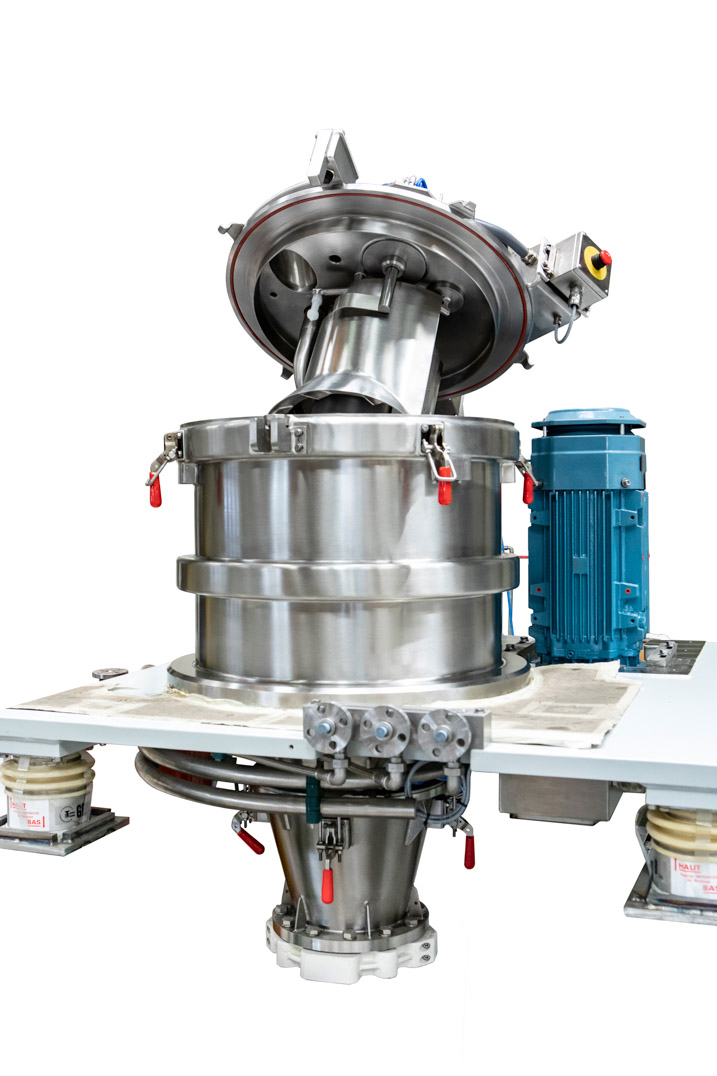

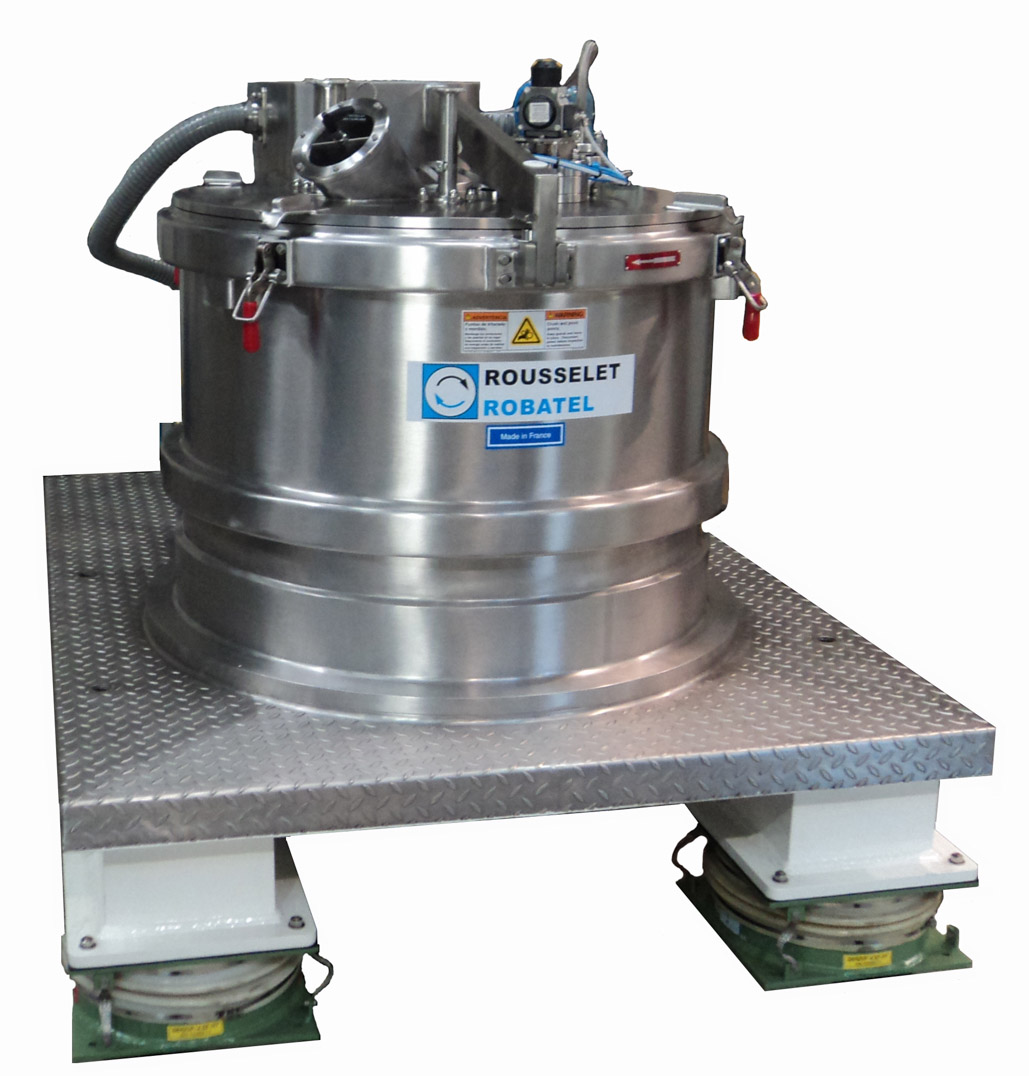

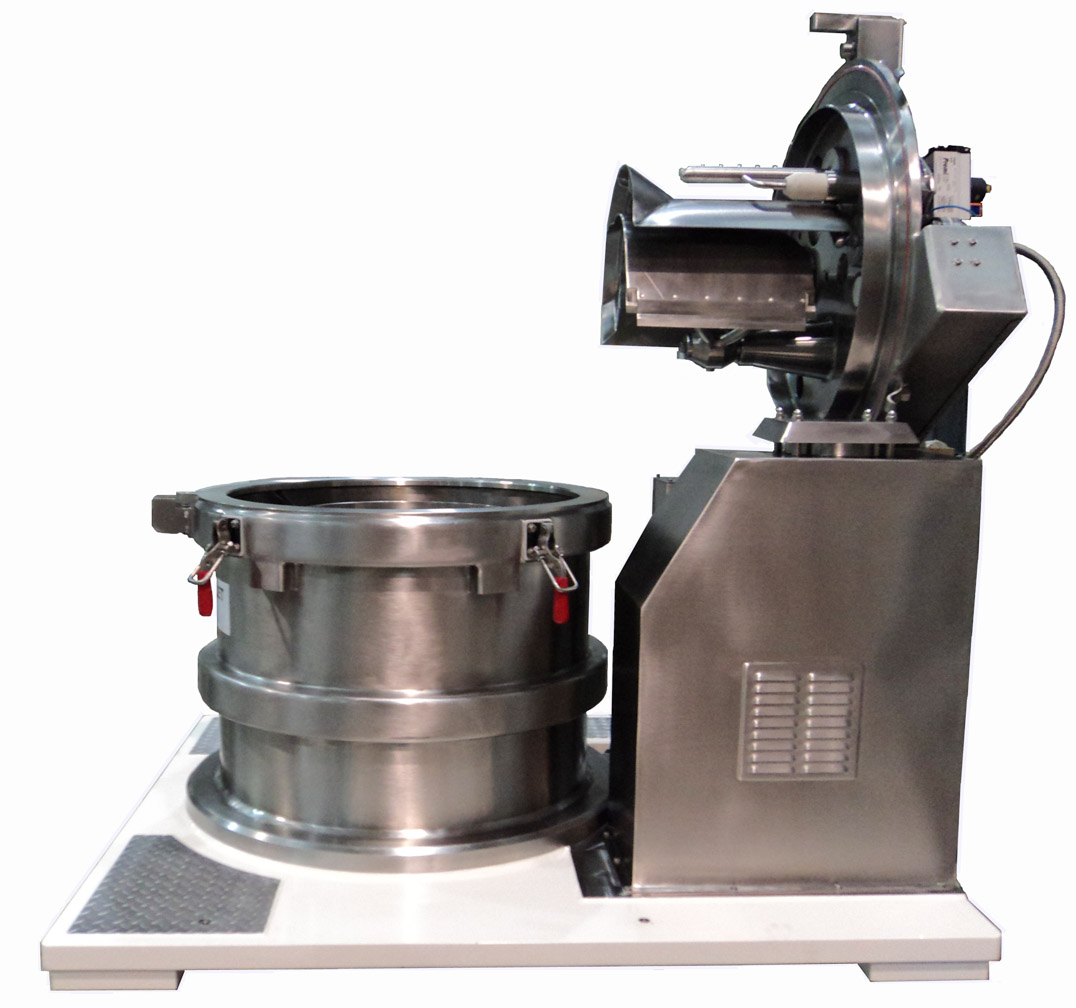

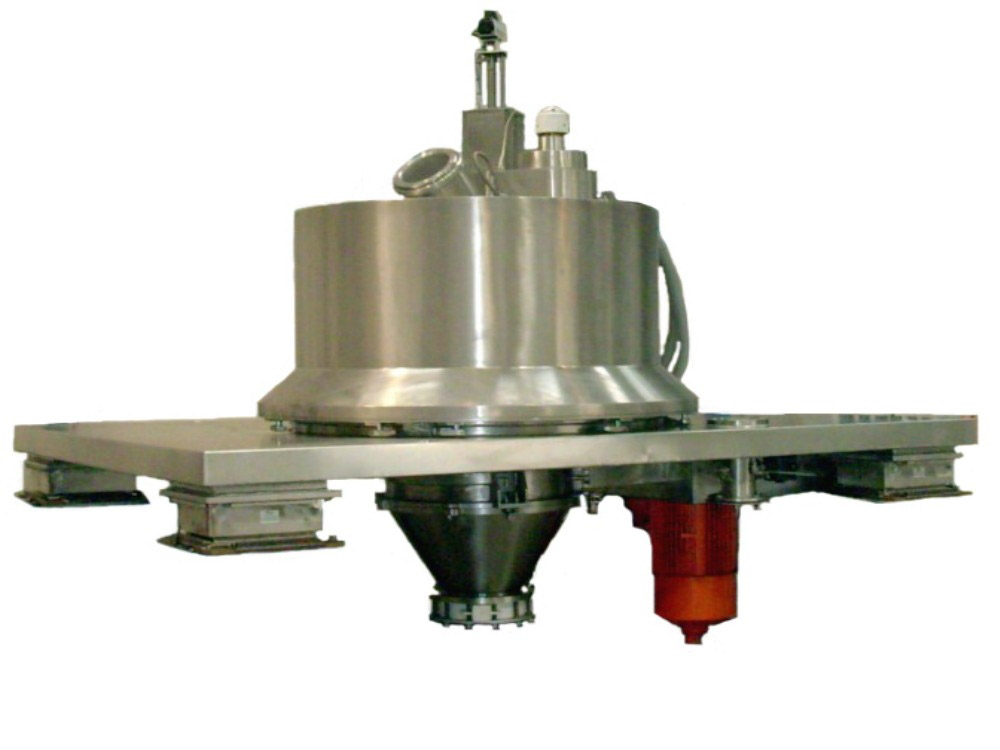

Industrial certical Axis Centrifuges with automatic bottom discharge

Centrifuge | Separation solid-liquid | Group: DEC



  Characteristics

  • Wide range of automatic discharge vertical axis basket centrifuges.
  • 7 basket diameters / 8 (and more) basket capacities.
  • Centrifuge design suitable for all types of feeding solutions and any cake consistency.

  Performance

  • Suitable for high output.
  • Possibility of running as a closed system under a controlled atmosphere to prevent operator exposure and product or environmental contamination.

  Functionability

  • Tailor made technical design and features.
  • Very large choice of optional equipment and accessories.



  Download brochure as PDF

  Submit request

Technical data filters

Type Reel ⌀ (mm) Reelhight (mm) Useful volume (L) max. loading (kg) Filter surface (m2) max. Rotation speed max. G-number
RC 63 Vx DEC 630 370 50 62 730 1.500 792
RC 85 Vx DEC 850 425 130 162 1.130 1.300 803
RC/SC 100 DEC 1.000 500 170 215 1.570 1.000 559
RC/SC 120 DEC 1.200 600 310 390 2.260 1.050 543
RC/SC 125 DEC 1.250 630 395 495 2.470 1.200 1.006
RC/SC 125 DEC 1.250 800 500 625 3.140 1.200 1.006
RC/SC 150 DEC 1.500 750 580 725 3.530 900 679
RC 160 DEC 1.600 1.000 1.000 1.250 5.030 900 724
